Kathe cement pipes industry slit drains, u-drains, saucer drains and drain/trench covers which meet a variety of storm water drainage requirements.
Slit Drains - Slit drain is ideal where you would like to provide drainage which is not visible. Water enters the drain through a tiny slit of 20mm. The drain top surface blends seamlessly with the surrounding flooring. These drains are strong enough to withstand light commercial vehicular loads.
U Drains - U drains are good for naturally sloping areas or over small lengths. These have no in-built slope. Suitable covers can also be provided based on the application.
Saucer Drains - Saucer drains are often installed next to kerb stones and provide drainage of water along the road length. The saucer shape of the drain improves the water flow properties. These can also be provided with holes which allow water to drain into a chamber.
Drain/Trench covers - We manufacture covers of various widths and load bearing capacities. The covers can be solid or perforated. They can also be provided with lifting hooks. Our covers incorporate proper cover blocks for reinforcement which significantly enhances the durability of our covers.

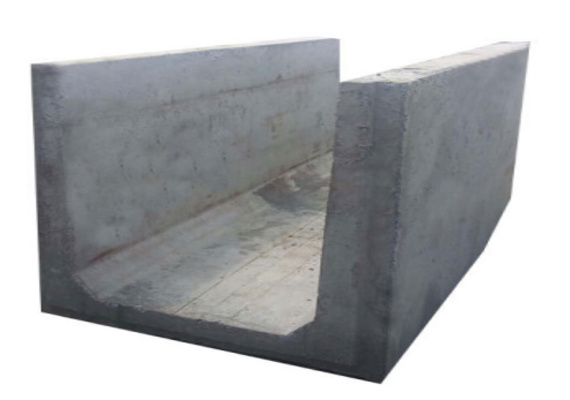

U drain: Specification
OVERVIEW : Precast concrete U drains allow for speedier construction of channels with minimum wet cast concrete work. KK manufactures a full range of U shaped drains. These drains range in widths from 200 mm to 855 mm. They are produced in strict factory controlled conditions that ensure high quality. Besides storm water drainage, these types of drains are also used to house underground cables and water lines in industrial setup.
AVAILABLE SIZES| Product Code | Nominal Size | Width | Depth | Length | Thickness |
|---|---|---|---|---|---|
| KCPI-01 | 300x300x500 | 300 | 300 | 500 | 50 |
| KCPI-02 | 300x375x500 | 300 | 375 | 500 | 50 |
| KCPI-03 | 300x450x500 | 300 | 450 | 500 | 50 |
| KCPI-04 | 355x315x610 | 355/340 | 315 | 610 | 60/65 |
| KCPI-05 | 585x310x610 | 585/610 | 310 | 610 | 50/70 |
| KCPI-06 | 705/675 | 705/675 | 355 | 475 | 57/80 |
| KCPI-07 | 890x300x500 | 890/855 | 300 | 500 | 110/80 |
| KCPI-08 | 600x600x2000 | 600 | 600 | 2000 | Variable |
Slit drain: Specification
OVERVIEW : Slit (also known as Slot Drains) drains combine a storm water collection system with the carrier pipe. They provide an effective, discreet, and aesthetically appealing method of drainage. These drains incorporate a 20 mm wide slit/slot at the top through which the water drains.The slit is diverging in shape which discourages silt from clogging the drain. The water collected is carried via an integrated pipe ranging in diameter from 150mm to 300mm. Due to the pipe shaped body of the drain these drains offer improved hydraulics compared to traditional U shaped drains. They are also easy to clean and maintain. These type of drains are ideal for providing storm water draining on roads, car parks, malls, pedestrian areas, industrial sites, and airport taxiways.
FEATURESManufactured with M - 30 grade of concrete by vibro compaction process Suitably reinforced for handling and to withstand light to extra heavy duty loads Provided with a tongue and groove joint to create a watertight joint between adjacent units (it is recommended to fill the groove with cement mortar) The drain should be laid on a properly compacted base The drain should be installed on a properly compacted base
AVAILABLE SIZES| Diameter | Size |
|---|---|
| 300mm | 1000x415x415 |
| 150mm | 1000x250x250 |
Saucer drain: Specification
OVERVIEW : Saucer drains provide a means to collect water overflows or storm water in pedestrian areas, malls, parking lots, etc. They also come with holes to allow the collected water to be discharged into another drainage system. KK manufactures saucer drains ranging in width from 450mm to 600mm.
FEATURESCan be solid or perforated Manufactured by M-30 grade of concrete by vibro compaction process using joint less FRP moulds so as to achieve shuttering finish.Perforated saucer drains are reinforced, while the plain ones can be reinforced on request
AVAILABLE SIZES| Product Code | Nominal Size | Length | Width | Thickness |
|---|---|---|---|---|
| KCPI-101 | 300x450x75/100 | 300 | 450 | 75/100 |
| KCPI-102 | 600x450x75/100 | 600 | 450 | 75/100 |
| KCPI-103 | 450x600x75/100 | 450 | 600 | 75/100 |
| KCPI-104 | 300x300x70/100 | 300 | 300 | 70/100 |
| KCPI-105 | 600x300x75/100 | 600 | 300 | 75/100 |
| KCPI-106 | 900x300x75/100 | 900 | 300 | 75/100 |
| KCPI-107 | 900x300x50/75 | 900 | 300 | 50/75 |
